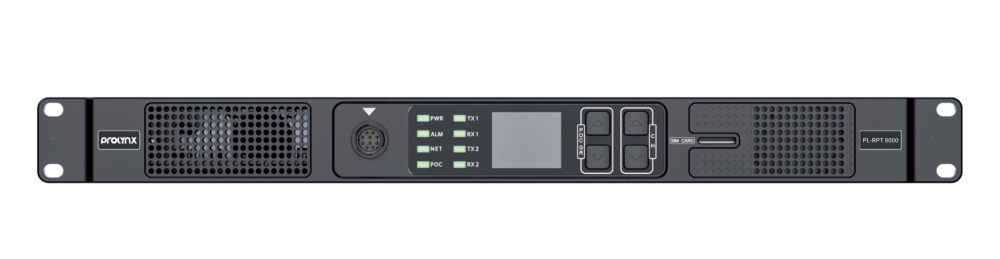

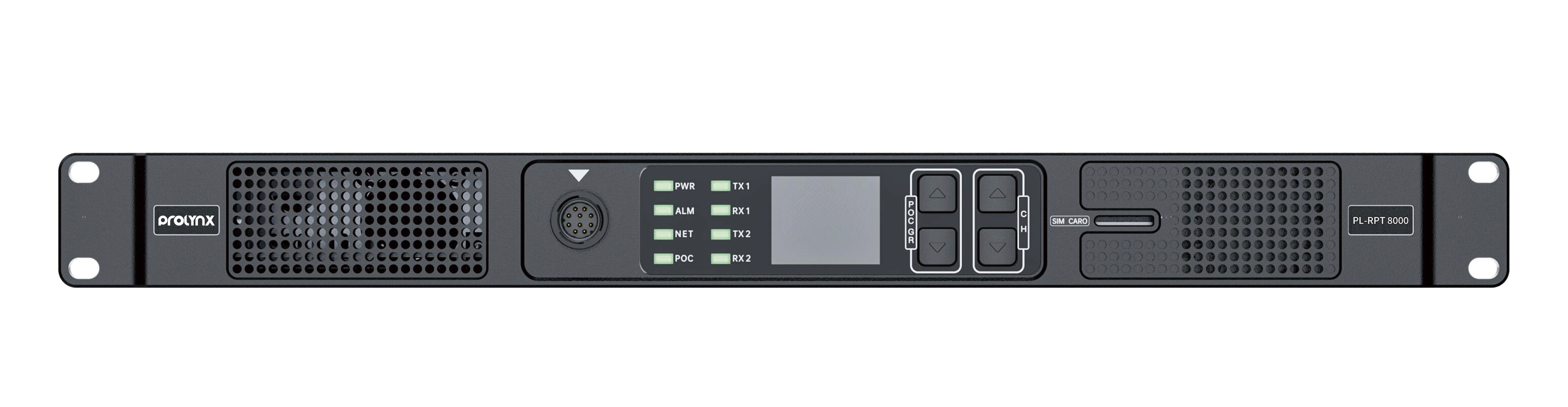

Prolynx – Analog/Digital/IP-Link Repeater – PL-RPT 8000

Brands:

Key Features:

    • Auto Channel Entry: Powers on directly to a preset channel.
    • Sleep Mode: Configurable dormancy setting for power saving.
    • Channel Retention: Adjustable channel hang time.
    • Versatile Calling: Supports private, group, and all-call.
    • Emergency Call: Dedicated feature for urgent communication.
    • Messaging: Send/receive messages.
    • Radio Check: Verify the status of another radio.
    • Remote Monitor: Monitor another radio’s audio remotely.
    • Radio Control: Remotely kill or activate radios.
    • Secure Communication: Encryption for protected transmissions.
    • Signal Filtering: CTCSS/DCS for unwanted signal filtering.
    • Upgradeable: Supports firmware/software upgrades.
    • Programming Protection: Safeguards against unauthorized changes.
    • MIC Sensitivity Control: Adjustable MIC gain for microphone/repeater.
    • Transmission Control: Includes TOT and transmission presets.
    • Environmental Alerts: High-temp and unlock alarms.
    • Bandwidth Options: 12.5/20/25kHz selection.
    • Signal Management: Adjustable squelch and end-tone elimination.
    • Analog Scan: Scans channels in analog mode.
Categories: , Tags: , Brands:

Additional information

Frequency range

400-470MHz

Channel capacity

64

Channel spacing

12.5/20/25KHz

Current

DC≤1A AC ≤0.4A
DC≤12A AC ≤1.5A
(MAX High Power)

Frequency stability

±1ppm

Antenna impedance

50Ω

Working temperature

-30°C~+60°C

Storage temperature

-40°C~+85°C

ESD

IEC 61000-4-2 (Level 4)
±8kV (contact discharge)
±15kV (air discharge)

Adjacent channel selectivity

"TIA-603 [email protected]
[email protected]"
"ETSI 70dB@20/25kHz
75dB@20/25kHz"

Spurious response rejection

[email protected]/20/15kHz (TIA)
[email protected]/20/25kHz (ETSI)

Block

90dB TIA
84dB (ETSI)

Signal to noise ratio

40dB @ 12.5kHz
43dB @ 20kHz
45dB @ 25kHz

Receiving spurious emission

-57dB

Output power

50W

FM modulation

11KΦF3E @ 12.5KHz
14KΦF3E @ 20KHz
16KΦF3E @ 25KHz

4FSK digital modulation

-36dBm<1GHz
-30dBm>1GHz

Modulation limiting

±2.5KHz @ 12.5KHz
±4.0KHz @ 20KHz
±5.0KHz @ 25KHz

FM noise

40dB @ 12.5KHz
43dB @ 20KHz
45dB @ 25KHz

Adjacent channel power

60dB @ 12.5kHz
70dB @ 20/25kHZ

Audio response

-1dB~-3dB

Rated audio distortion

≤3%
