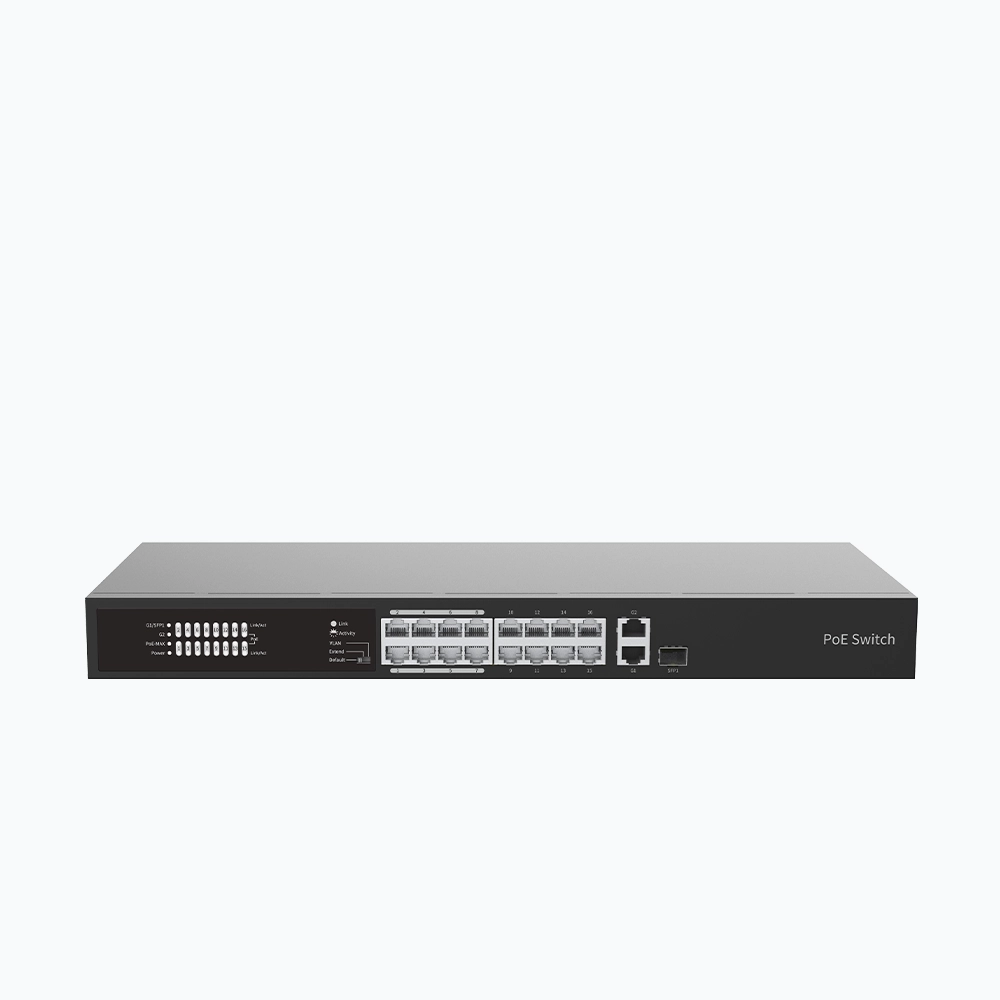

Prolynx - Ethernet PoE Switches - PL-16POE02U

In Stock

Prolynx – Ethernet PoE Switches – PL-16POE02U

Brands: Prolynx

Key Features:

Multiple working modes to address your business needs:Normal, Secure and Surveillance
Support port traffic control
Support for secure mode, all downlink ports can communicate only with uplink ports
Up to 250m transmission distance on surveillance mode
Support buffer optimization
All metal housing, safe and reliable

Product successfully added to the Quote List

Categories: CCTV Camera , Networking devices Tags: CCTV Camera , Prolynx Brands: Prolynx

Additional information

Additional information

Additional information

Ports	16×10/100Mbps PoE+ ports (RJ45)+2×1000Mbps Combo ports,RJ45 port, full duplex, MDI/MDI-X adaptive
Standards	IEEE802.3,IEEE802.3u,IEEE802.3z,IEEE802.3ab,IEEE802.3x,IEEE802.3af,IEEE802.3at,IEEE802.3az
Switching Capacity	7.2Gbps
Forwarding Performance	5.36Mpps
Forwarding mode	Store-and-forward switching
Packet Buffer	4M bit
MAC	16K
Dimensions (W×D×H)	440189.844mm
Weight	2.12KG
Power Supply	AC: 100-240V, 50/60Hz, Max. 2.5A
PoE	802.3at/af （4/5+，7/8-）
Max. PoE Power	Max capacity: 225W, Max capacity for single port: 30W
Prior Ports	1~ 8
Operating Temperature	-10°C-55°C (14°F-131°F)
Operating Humidity	10%～90% (noncondensing)
Storage Humidity	5%~90% (noncondensing)
Indicator	POWER: Steady on: AC input is normal – Off: No AC input PoE: Off: No PoE power supply – Steady on: PoE power supply is normal PoE-MAX: off ：The POE power supply power of the whole machine is less than 80% of the specification Steady on : The POE power supply power of the whole machine is greater than 85% of the specification LINK/ACT：Off: No link , Steady on: Linked, Flashing: Transmitting data
Working Mode	Default(Normal mode) : All ports can communicate with each other. VLAN(Secure mode): Downlink ports can communicate only with uplink ports. Enabling PD keepalive function, the switch will restart the IPC via PoE power when the IPC sends no message in a period of time. Extend(Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports.
