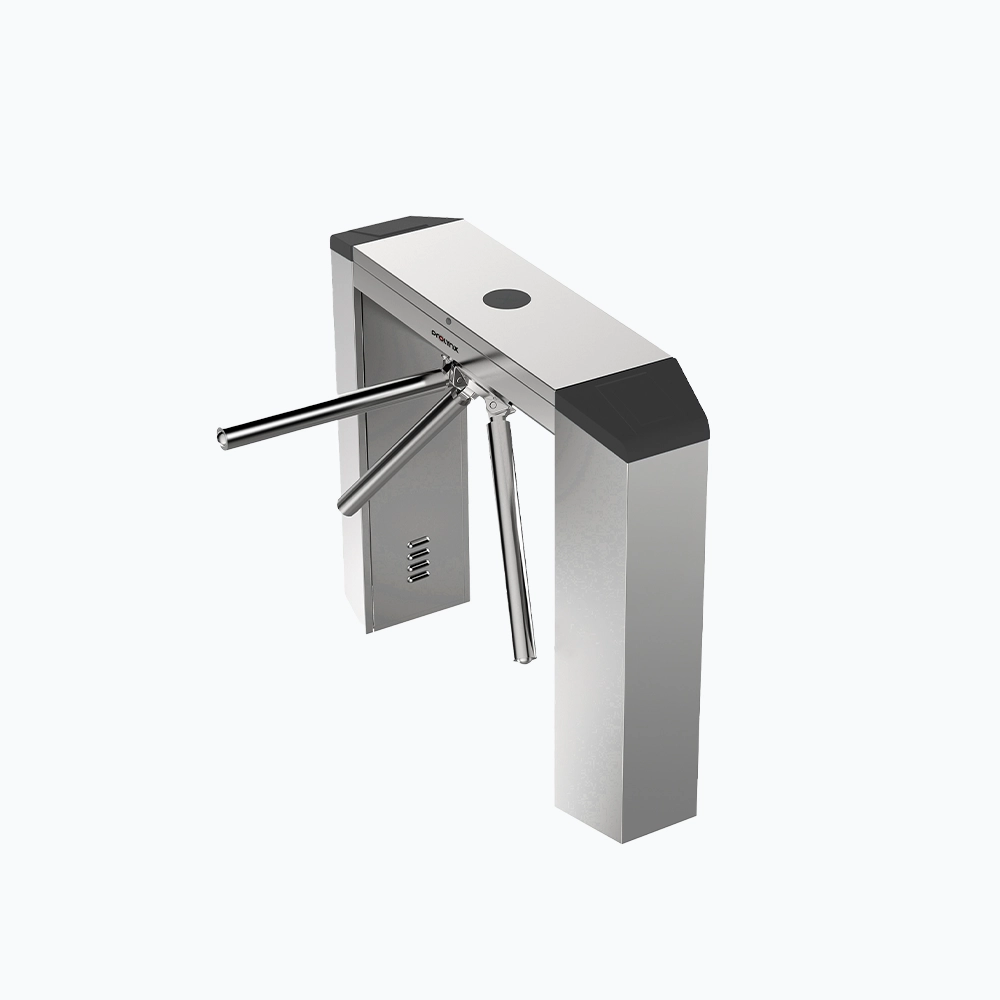

Prolynx – Finger Reader/Card Reader Tripod Turnstile – PL-TT002

Key features

• Use Finger Reader, RFID IC cards, ID cards, Barcode or magnetic cards as an automatic identification system for access attendance and fee management
• Direction indicator shows pedestrian access status and guides pedestrian correctly for smooth passage
• Semi-auto mode: After card reading, the passenger pushes the arm by hand until they pass through the barriers and the arm returns to its home position
• Full-auto mode: After card reading, the passenger pushes the arm with little strength, and the arm automatically rotates forward by motor power until it returns to its home position
• Pure mechanical mode: The passenger pushes the arm by hand until they pass through the barriers
• Single or bi-directional function in both mechanical and electrical versions
• Automatic reset of barrier arms after each passage
• Cable or wireless remote control panel key override for drop-down when power is off or in emergencies
• Adjustable timeout delay

Operating Modes

• Single passage in the set direction
• Bi-directional single passage
• Free passage in the set direction
• Always free or locked

Materials

• Housing: In stainless steel AISI 304 or AISI 316.
• Barrier arm-stainless steel bar
